Modelo: Aten VS-94A

Divisor de video de 1 a 4 puertas Media Resolución
Permite envíar 1 única señal de video VGA simultáneamente a 4 dispositivos de despliegue
Resolución 1280x1024 250 Mhz Hasta 65 m de cable

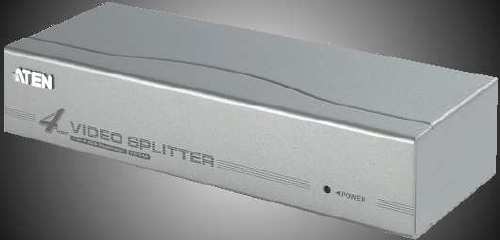

VS-94A front

VS-94A back

Con estos dispositivos, Ud. puede reproducir la imágen generada en su PC
hasta en 4 monitores simultaneamente

4 ports split

Caracteristicas:

Enhances Video Signals for Long Distance Broadcasting (up to 65m)
Gain Control Switch for Optimum Picture Quality
Power Saving Mode When Computer if Off
Supports VGA, SVGA, and Multisync Monitors
OS Support: Windows 2000, Windows XP, Linux,
Mac and Sun

Aplicaciones:

Public Broadcasting Systems (Stock Market Info, etc.)
Video Conferencing
Education
High Quality Multimedia Presentations

Especificaciones:

Function		VS-94A
Connectors	Input (Male)	1 High Density HD-15
	Output (Female)	4 High Density HD-15
VGA Bandwidth (-3db)		250 MHZ
VGA Res/ Vertical Freq		1920x1440 @ 60 Hz
Signal Type		XGA, VGA, SVGA, Multisync
Cable Distance		65m [210'] (max.)
Power Consumption		DC 9V 180mA (max.)
Housing		Metal
Weight		450 g
Comsumption (Max)		DC 9V - 2.43W
Dimensions (L x W x H)		200 x 75 x 45 mm
Operating Temperature		5°C ~ 40°C
Storage Temperature		-20°C ~ 60°C
Humidity		0 ~ 80% RH, Non-condensing
