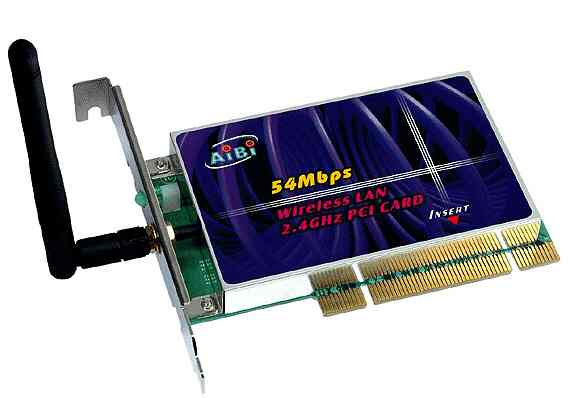

Modelo: W54P
Adaptador PCI para redes inalámbricas 802.11g con antena separable

System

Standards

IEEE 802.11g

Chipset

RA2560 + RA2525+AP1091

Host Interface PCI Standard Universal Add-in Card

Modulation

Orthogonal Frequency Division Multiplexing(11g)
54/48 Mbps(QAM-64)
36/24 Mbps(QAM-16)
18/12 Mbps(QPSK)
9/6 Mbps(BPSK)
Direct Sequence Spread Spectrum(11b)
11/5.5 Mbps(CCK)
2 Mbps(DQPSK)
1 Mbps(DBPSK)

Data Rate

1, 2, 5.5, 11, 22; 6, 9, 12, 18, 24, 36,48,54 Mbps

Operating Voltage

3.3V +/- 5%

Operating Range

Indoor : 30 - 75m
Open Space : 100 - 300m
(Depended on antenna type)

RF

Frequency Band

2.400 ~ 2.4835 GHz (subject to local regulation)

Radio Technology

Orthogonal Frequency Division Multiplexing(11g)

Direct Sequence Spread Spectrum(11b)

Number of Channel

11 Channels (US, Canada )

4 Channels ( France )

14 Channels ( Japan )

13 Channels (Most European Countries, ETSI)

RF radiated output power(+/- 1.5dB)

IEEE 802.11g:  13dBm, typical.
IEEE 802.11b:. 17dBm, typical.

Receiver Sensitivity with data rate

11g @PER <10% 11b @PER <8%
54Mbps: -70dBm
48Mbps: -71dBm 11Mbps: -84dBm
36Mbps: -75dBm 5.5Mbps: -85dBm
24Mbps: -79dBm 2Mbps: - 86dBm
18Mbps: -82dBm 1Mbps: - 88dBm
12Mbps: -84dBm
  9Mbps: -87dBm
  6Mbps: -88dBm

Antenna Port

Two Reverse Female SMA connectors

Regulatory and Environmental Compliance

EMC certification

FCC part 15 ( USA )

R&TTE ( Europe ) , TBD

ARIB-Telec ( Japan ) , TBD

Temperature Range

Operating : 0 ~ 55 deg C , Storing : -10 ~ 65 deg C

Software

☺Infrastructure mode:
Seamless roaming within the IEEE 802.11b & 11g wireless LAN.
Supports WEP encryption.

☺Ad-Hoc mode:
Peer to peer connection.

RC4 WEP 64 / 128
802.1x
WPA-WiFi Protected Access (Hardware ready)

Mechanical
